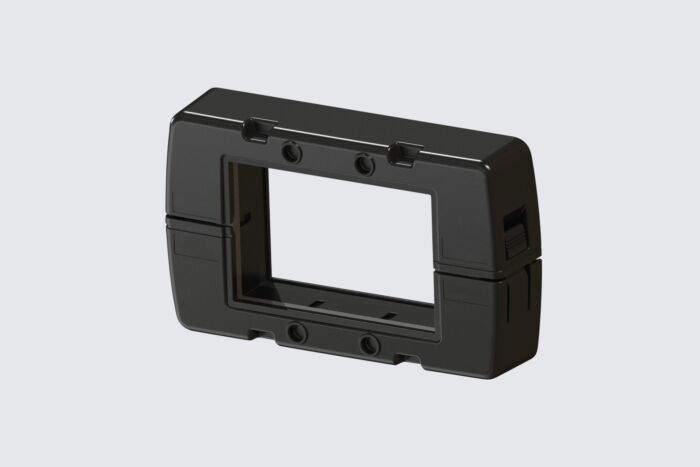

GCMH-10SF-I

Frames

Cable entry with foamed-in TPE seal

Article Number : GCMH-10SF-I

Available to order

RoHS II compliant
Certified acc.EN45545-2:2013, R22/HL1,HL2 and R23/HL1,HL2,HL3
Halogenfree
Polyamide PA6.6
Protection class IP66 according DIN EN 60529

Dimensions

https://gimota.com/Graphics/gcmh-10sf-i_01_z_web.jpg
https://gimota.com/Graphics/gcmh-10sf-i_02_z_web.jpg
https://gimota.com/Graphics/gcmh-10sf-i_03_z_web.jpg
Width [mm]

64
Height [mm]

24.2
Construction height [mm]

24.2
Length [mm]

106
Cut-out width [mm]

36
Cut-out length [mm]

65
Screw Ø [mm]

5.5

Technical characteristics

Material

Polyamide PA6.6
Glass fibre reinforced

Yes
Halogen-free

Yes
Silicone-free

Yes
Sealing material

TPE
Colour

Black
Mounting type

Screw
Number of screw holes

4
Fastening screw torque [Nm]

3
Working temperature min. [°C]

-40
Working temperature max. [°C]

+120
Flammability rating UL 94

V0
Fire protection class DIN EN 45545-2

R22:HL1/HL2

R23: HL1/HL2/HL3
Protection class EN 60529

IP66
RoHS-compliant

Yes
REACH-compliant

Yes
