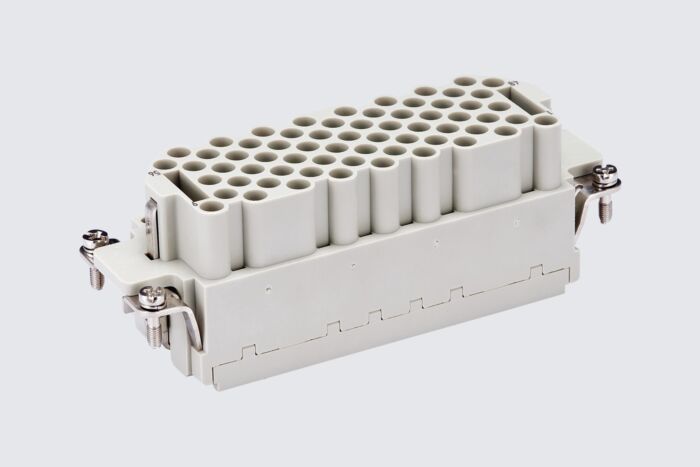

Fixed pole insert 64 poles, socket, 500V, 16A

Fixed pole

Size 24

Article Number : GMRF-500-16-64SEC-24

Available from stock

CE certified

UK Conformity Assessed (UKCA)

Achieve acc. fire protection class UL94, V0

Certified acc. EN45545-2:2013 R22/HL1,HL2 | R23,24/HL1,HL2,HL3

REACH compliant

RoHS II compliant

Dimensions

https://gimota.com/Graphics/gmrf-500-16-64sec-24_01_z_web.jpg

https://gimota.com/Graphics/gmrf-500-16-64sec-24_02_z_web.jpg

B1 [mm]	33.8
B2 [mm]	27.0
Height [mm]	36.2
H2 [mm]	21.2
H3 [mm]	1.2
L1 [mm]	111.0
L2 [mm]	104.0

Thermal properties

Material contact insert	Polycarbonate (PC)
Operating temperature insert [°C]	-40 - +125

Electrical properties

Rated current [A]	16
Operating voltage [V]	500 (PD2 = 830)
Rated voltage according to UL/CSA [V]	600
Test voltage DC [V]	6 (PD2 = 8)
Insulation resistance (Ω )	≥10¹⁰
Pollution degree	3

Standards

Standards	According DIN EN 61984, DIN EN 60664
Basic standards	DIN EN 61984 DIN EN 60664
Fire protection class EN 45545-2	R22/HL1,HL2 R23,24/HL1,HL2,HL3
Flammability rating UL 94	V0
REACH-compliant	SVHC substances, no
RoHS-compliant	Compliant

Download Product Information

Datasheet_GMRF-500-16-64SEC-24.pdf
