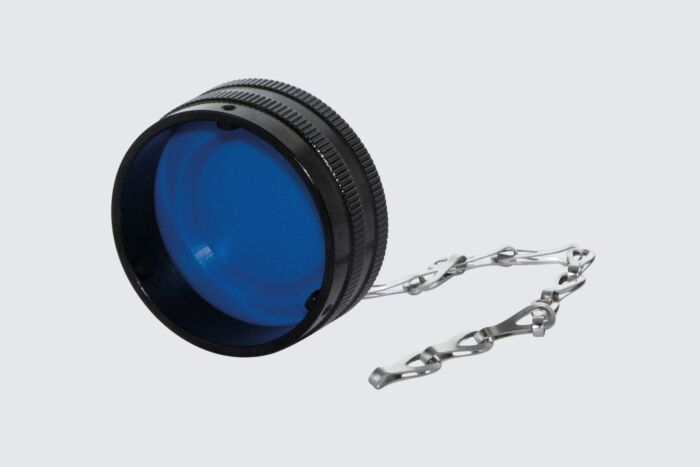

Metallic protection cap for bayonet receptacles (GB,GR & GS)

Metal covers, for receptacles

Article Number : PR10SL-AA

Available from stock

RoHS II compliant
Protection class according DIN EN 60529 / IP69

Dimensions

https://gimota.com/Graphics/pr_01_z_web.jpg
D1 Ø [mm]

24
d1 Ø [mm]

4.3
L1 [mm]

127.0
Height [mm]

15.8

Mechanical properties

Size

10SL
Shell material

Aluminum alloy
Surface

Zinc
Type of surface

Passivated
Thickness of surface treatment (µ)

12-15µ
Surface colour

Black
Corrosion resistance [h]

200
Operation temperature [°C]

-55 - +90
Temperature shock [°C]

-55 - +125
Conductivity (MΩ)

≤ 0.5
Chain material

Stainless steel

Download Product Information

Datasheet_PR10SL-AA.pdf

Please contact your Gimota partner for other shell materials or surface coatings.
