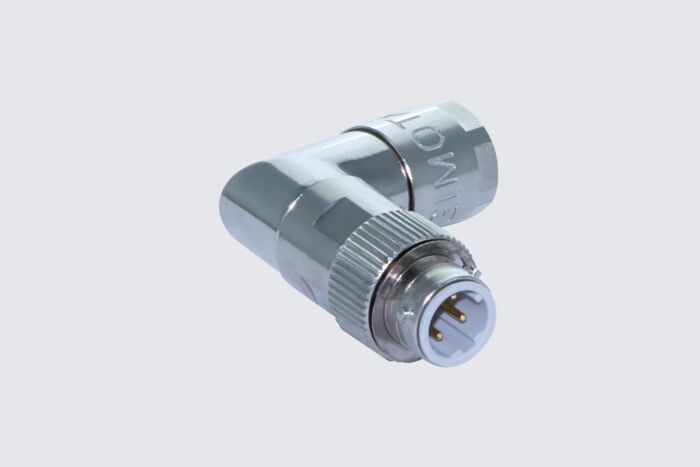

GTB12 Cableplug, elbow, d-code

Cable connectors

according EN 61076-2-011

Article Number : GTB12-D-4-MP-100

Available from stock

Protection class according EN 60529 / IP67
Suitable for EMI applications
RoHS II compliant
REACH compliant
Easy to assemble

Dimensions

https://gimota.com/Graphics/gtb12-d-4-mp_01_z_web.jpg
https://gimota.com/Graphics/gtb12-d-4-mp-100_02_z_web.jpg
https://gimota.com/Graphics/layout_m12-d-4-mp_web.jpg
D1 Ø [mm]

16
D2 Ø [mm]

15.0
L1 [mm]

46.0
L2 [mm]

7.2

Thermal properties

Material contact insert

Latamid 6H-V0
Operating temperature insert [°C]

-55 - +85

Electrical properties

Insulation resistance (Ω )

≥ 108

Potential drop between contacts and housing [kV]

1.4
Potential drop across contacts [kV]

0.84
Data transfer speed

10/100 Mbits/s - Cat5e
Pollution degree

3
Rated DC voltage [V]

63
Rated current [A]

4

Standards

Fire protection class EN 45545-2

R22/HL1,HL2

R23,24/HL1,HL2,HL3
Fire protection class NF F 16-101 / NF F 16-102

I2/F2
Protection class EN 60529 (mounted)

IP67
RoHS-compliant

Compliant with exception 6c (copper alloy ≤ 4% lead)
REACH-compliant

SVHC substances, yes - Lead

Download Product Information

Datasheet_GTB12-D-4-MP-100.pdf

Please contact your Gimota partner for other M12 products

Gimota M12 connectors are supplied including contacts.
