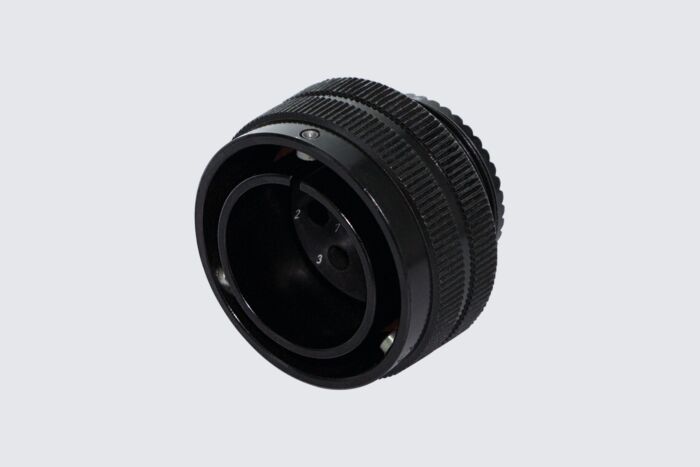

Plug with bayonet coupling nut
Cable connectors
Series GB
Article Number : GB60-36-5PN-EAC
Available from stock
Dimensions
| D1 Ø [mm] |
67 |
|---|---|
| L1 [mm] |
38.5 |
| N1 |
2 1/16"-16 UN 2A |
| X1 [mm] |
11.3 |
Mechanical properties
| Size |
36 |
|---|---|
| Contact type |
Pin |
| Number of coding options |
2 |
| Number of contacts, size 0 |
4 |
| Shell material |
Aluminum alloy |
| Surface |
Epoxy-polyurethane |
| Type of surface |
Varnished |
| Thickness of surface treatment (µ) |
13-16µ |
| Surface colour |
Black |
| Corrosion resistance [h] |
500 |
| Operation temperature [°C] |
-55 - +125 |
| Temperature shock [°C] |
-55 - +125 |
| Conductivity (MΩ) |
Non conductive |
| EMI |
No |
| Material sealing ring |
Silicone |
| Coupling-torque to lock [Nm] |
max. 9.0 |
| Coupling-torque to open [Nm] |
min. 4.5 |
Thermal properties
| Material contact insert |
Ethylene acrylate GXF / thermoplastic |
|---|---|
| Operating temperature insert [°C] |
-55 - +150 |
Electrical properties
| Operating voltage DC [V] |
700 |
|---|---|
| Operating voltage AC [V] |
500 |
| Test voltage AC [V] |
2000 |
| Insulation resistance (mΩ) |
≥ 5000 |
| Insulation creepage distance [mm] |
≥ 3.2 |
| Voltage class |
MIL-DTL-5015 |
Electrical properties contacts
| Size 0 - rated current (continuous) [A] |
200 |
|---|---|
| Size 0 - maximum current (short-term) [A] |
300 |
| Size 0 - test current [A] |
240 |
Standards
| Fire protection class EN 45545-2 |
R23/HL3 |
|---|---|
| Protection class EN 60529 (mounted) |
IP69 |
