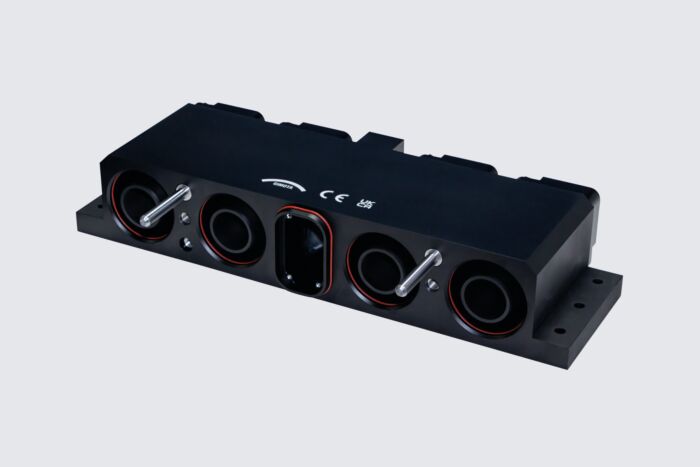

Power connector housing, surface-mounted, max. 960 A

Base mount housing

4-pole version, with accessory slot

Article Number : GMPH-4S1Y-BR-30-S

Available to order

Protection class according DIN EN 60529 / IP68
RoHS II compliant
REACH compliant
Suitable for EMI applications

Dimensions

https://gimota.com/Graphics/gmph-4s1y-br-30-s_01_z_web.jpg
https://gimota.com/Graphics/gmph-4s1y-br-30-s_02_z_web.jpg
B2 [mm]

115
H1 [mm]

85
H2 [mm]

20
L1 [mm]

460

Thermal properties

Material contact insert

High temperature thermoplastic
Operating temperature insert [°C]

-55 - +180

Electrical properties

Operating voltage [V]

3600
EMI

Yes

Standards

Fire protection class EN 45545-2

R22:HL1/HL2/HL3

R23: HL1/HL2/HL3
Protection class EN 60529

IP68
REACH-compliant

Yes
RoHS-compliant

Yes

Download Product Information

Datasheet_GMPH-4S1Y-BR-30-S.pdf

Complementary Products

Counterpart (1)
Contacts (2)
Powersteckverbinder Gehäuse, Ausführung Stecker, Max 960A
Power connector housing, plug version, max. 960 A
4-pole version, with accessory slot
Article Number : GMPH-4P1Y-PI-30-S
