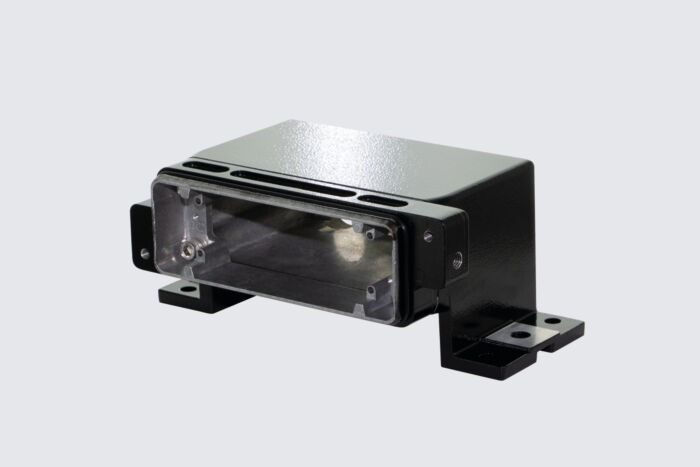

Hood size 24 B

Base housing

4 x M25 thread, top entry

Article Number : GMRH-24BS-BBK-090-TEH-4M25

Available to order

CE certified
UK Conformity Assessed (UKCA)
Protection class according DIN EN 60529 / IP69
REACH compliant
RoHS II compliant

Dimensions

https://gimota.com/Graphics/gmrh-24bs-bbk-090-teh-3m32_01_z_web.jpg
https://gimota.com/Graphics/gmrh-24bs-bbk-090-teh-3m32_02_z_web.jpg
d1 Ø [mm]

M25 x 1.5
N1

M25x1.5

Standards

Protection class EN 60529

IP69
REACH-compliant

SVHC substances, yes - Lead

RoHS-compliant

Compliant acc. to 2015/863/EU (RoHS II), Annex II

Download Product Information

Datasheet_GMRH-24BS-BBK-090-TEH-4M25.pdf

Complementary Products

Cable glands (4)
Kabelverschraubung blueglobe ™ Brandschutz
Cable gland blueglobe ™ Fire protection
Metric cable gland made of nickel-plated brass, in accordance with EN45545-2
Article Number : 101.352.250
Kabelverschraubung blueglobe ™ tri Brandschutz
Cable gland blueglobe ™ tri Fire protection
Metric EMC cable gland made of nickel-plated brass, in accordance with EN45545-2
Article Number : 104.340.260
UNI Wellrohrdurchführung Brandschutz Ausführung
UNI corrugated conduit transit fire protection version
Metric cable gland made of nickel-plated brass, in accordance with EN45545-2 for standard corrugated conduit types
Article Number : 120.400.251
UNI Wellrohrdurchführung Brandschutz Ausführung
UNI corrugated conduit transit fire protection version
Metric cable gland made of nickel-plated brass, in accordance with EN45545-2 for standard corrugated conduit types
Article Number : 120.400.250
