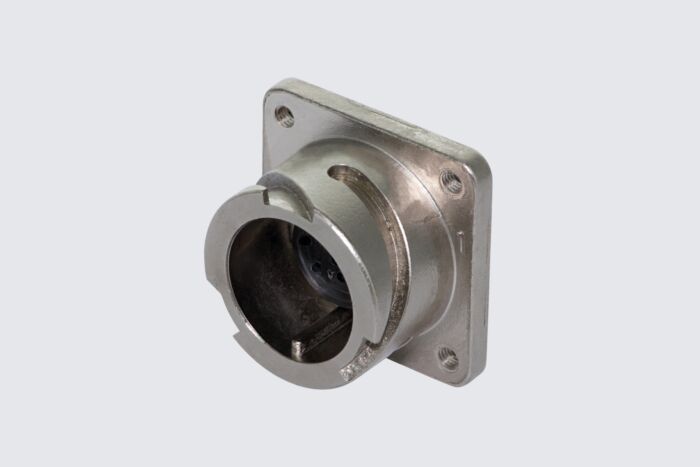

Receptacle, front panel mount

Ersatzteile

Series GB

Article Number : GB211-14S-5PN-EAE-A01

Available from stock

RoHS II compliant
Protection class according DIN EN 60529 / IP69
Suitable for EMI applications
Achieve acc. fire protection class EN45545-2, R23/HL3
1 possible coding

Dimensions

https://gimota.com/Graphics/gb211_01_z_web.jpg
https://gimota.com/Graphics/gb211_02_z_web.jpg
https://gimota.com/Graphics/layout_14s-5p_web.jpg
D1 Ø [mm]

27.4
L1 [mm]

30.0
L2 [mm]

18.2
L3 [mm]

3.2
N1

3/4"-20 UNEF 2A
T1 [mm]

M3
X1 [mm]

9.0
S1 [mm]

30.2
R1 [mm]

23

Mechanical properties

Size

14S
Contact type

Pin
Number of coding options

1
Shell material

Aluminum alloy
Surface

Electroless nickel
Thickness of surface treatment (µ)

12-15µ
Surface colour

Blank
Corrosion resistance [h]

48
Operation temperature [°C]

-55 - +125
Conductivity (MΩ)

≤ 0.5
EMI

Yes
Coupling-torque to lock [Nm]

max. 1.8
Coupling-torque to open [Nm]

min. 0.55

Thermal properties

Material contact insert

Ethylene acrylate GXF
Operating temperature insert [°C]

-55 - +150

Electrical properties

Operating voltage DC [V]

250
Operating voltage AC [V]

200
Test voltage AC [V]

1000
Insulation resistance (mΩ)

≥ 5000

Insulation creepage distance [mm]

≥ 1.6
Voltage class

MIL-DTL-5015

Electrical properties contacts

Size 16S - maximum current (short-term) [A]

22
Size 16S - rated current (continuous) [A]

13
Size 16S - test current [A]

20

Standards

Fire protection class EN 45545-2

R23/HL3

Download Product Information

Datasheet_GB211-14S-5PN-EAE-A01.pdf

Please contact your Gimota partner for other shell materials, surface coatings or contact insert materials.

Voltage classes tested acc. MIL-DTL-5015 Power transmission verification acc. VG95234 / 2 test 5.10.1 and VG95210 / 37 Corrosion resistance tested acc. MIL 1344A Test 101.1 Temperature shock tested acc. MIL 202F, 107G Method Electrical conductivity acc. MIL 1344A, Test 3007
