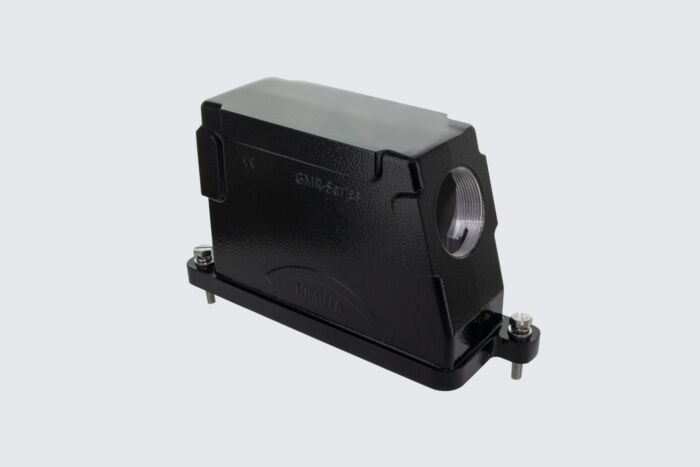

Hood size 24 B

Hoods

1 x M25 thread, lateral, inclined

Article Number : GMRH-24BS-H-SEA-1M25

Available from stock

CE certified
UK Conformity Assessed (UKCA)
Protection class according DIN EN 60529 / IP69
REACH compliant
RoHS II compliant

Dimensions

https://gimota.com/Graphics/gmrh-24bs-h-sea_01_z_web.jpg
https://gimota.com/Graphics/gmrh-24bs-h-sea_02_z_web.jpg
B1 [mm]

58.0
Height [mm]

110
H2 [mm]

65.3
L1 [mm]

192.0
L2 [mm]

173.0
N1

M25x1.5

Technical characteristics

Shell material

Aluminium die-cast
Surface

Powder-coated

Surface colour

RAL 9005 (jet black)

Locking mode

Screw locking
Operation temperature [°C]

-40 - +125
Material sealing ring

Nitrile Butadiene Rubber (NBR)
Number of slots

6 modules

No. of cable entrances

1
Side entry angled (SEA)

1 x M25
Cable strain relief

Cable gland

Standards

Protection class EN 60529

IP69
REACH-compliant

SVHC substances, yes - Lead

RoHS-compliant

Compliant acc. to 2015/863/EU (RoHS II), Annex II

Download Product Information

Datasheet_GMRH-24BS-H-SEA-1M25.pdf
